You are here: home  > Twin Screw Barrel  > Twin Conical Screw Barrel  > Centrifugal Casting Conical Twin Screw Barrel
Enlarge Centrifugal Casting Conical Twin Screw Barrel

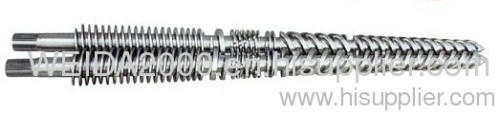

Centrifugal Casting Conical Twin Screw Barrel

Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: WD 027
Production Capacity: 1 set
Delivery Date: 30 days
Surface hardness: HV900--HV1000
Screw straight tolerance: 0.015 mm/m
Means of Transport: Ocean,Air
Packing: wooden case
Brand Name: WEIDA
Special treatment: Carbide coating
Surface roughness: Ra 0.4μm

Standard 38CRMOALA Twin Conical Screw
Advanced nitriding process
Diameter of screw:D12-D300mm
L/D ratio of screw:10-50

38CRMOALA Twin Conical Screw
38CRMOALA Twin Conical Screw
Specifications of standard twin conical screw and barrel
35/75, 45/100, 51/105, 55/110, 55/120, 60/125, 65/132, 80/156, 92/188

Grade of conical twin screw
Degree of Abrasiveness
Low
Moderate
High
Screws
Nitrided
Bimetallic Spraying
Tungsten Coated
Barrels
Nitrided
Bimetallic
Bimetallic

Technical information:
Steel Material
DIN 41CrA1Mo7 / AST M4140/ GB 38CrMoAlA, 9Cr18MoV
Heat Treatment
Tempered and nitride, nitride depth: 0.5  – 0.7 mm
Surface hardness:
HV900 – HV1, 000
Special treatment:
Carbide coating (screw flight) and bimetallic barrel
Screw straight tolerance
0.015 mm/m
Surface roughness
Ra 0.4μm
